Smart Supervision for the Jeju Samdasoo Smart Factory Construction Project
Applied Technology

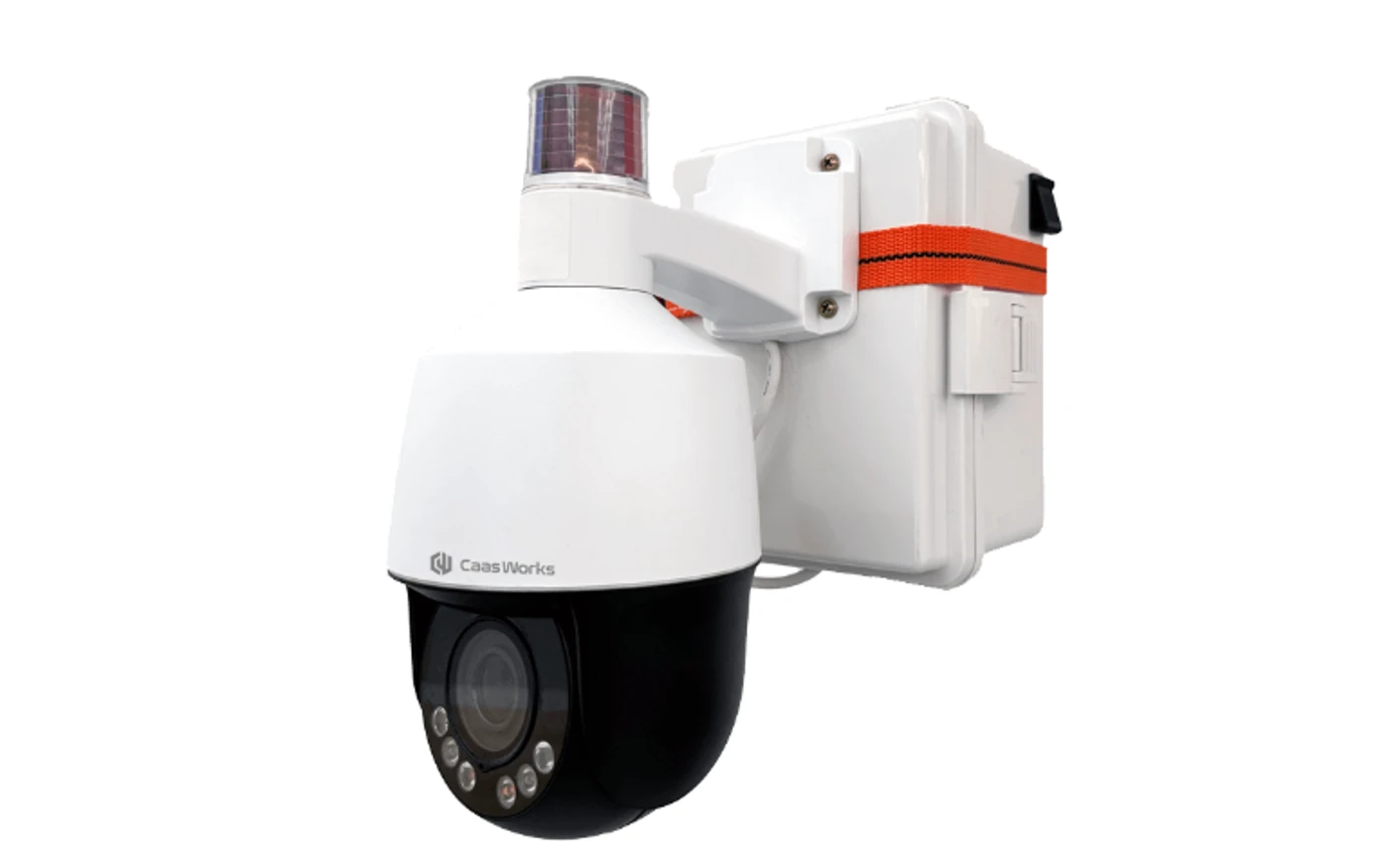

Intelligent Camera (Fixed / Mobile)
LTE communication included, automatically generates a daily 1-minute time-lapse. 5 fixed units in operation.
Intelligent Camera (4K)
LTE communication included, for high-resolution panoramic shooting. 1 fixed unit in operation.

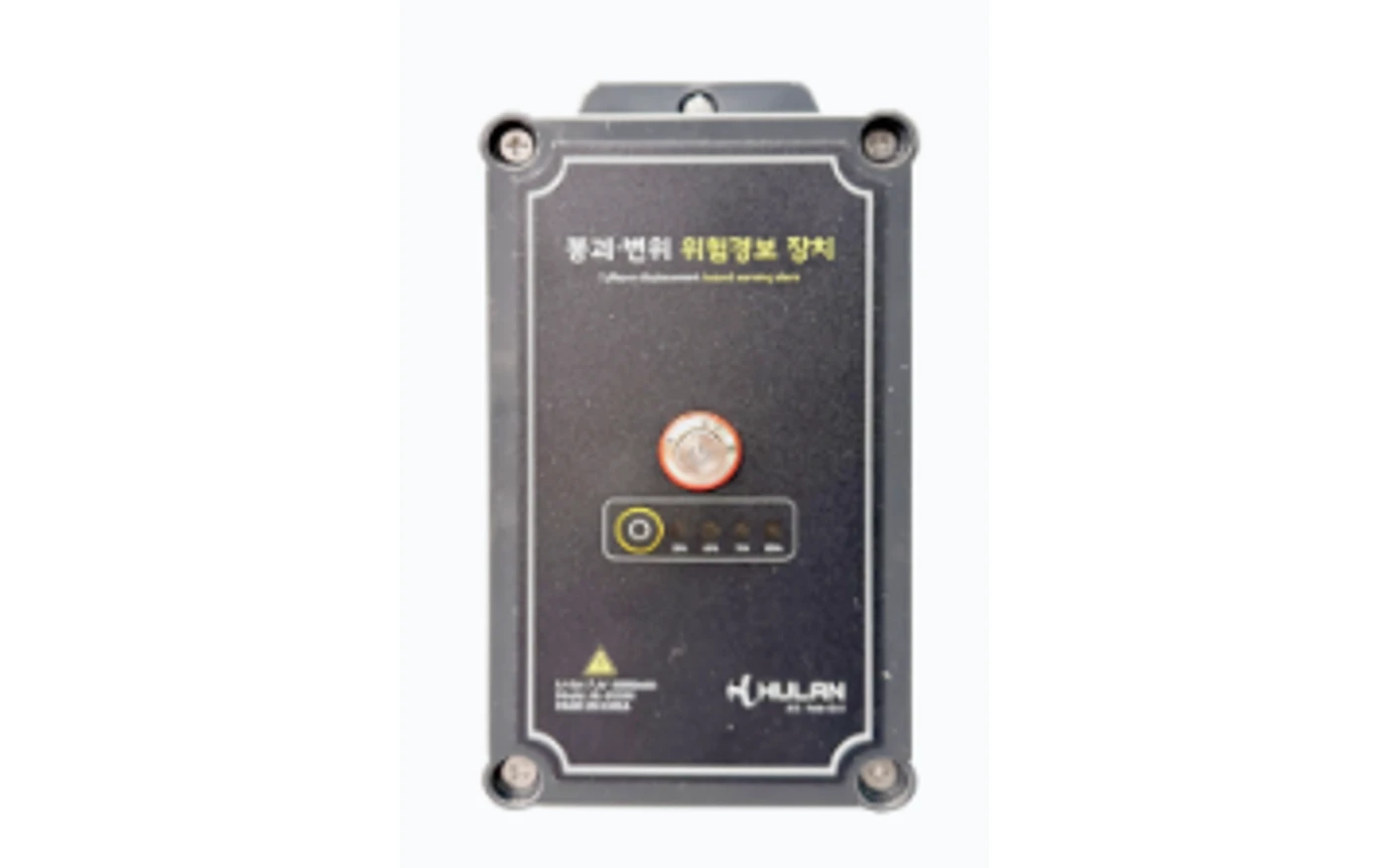

IoT Displacement Sensor
3-axis inclinometer (tilt) detecting ±0.01°/±90° displacement, battery and charger included (lasts approx. 90 days). 2 units in operation.
Work-Stop Emergency Button
Work-stop voice guidance output (Max. 105dB), built-in warning light, replaceable battery (approx. 6 months). 2 units in operation.
Fall-Arrest Safety Hook
Safety hook usage detection (position), SOS signal transmission, replaceable battery (approx. 6 months). 5 units in operation.
Body Cam
FHD (1920×1080) 2-megapixel, live streaming up to 5.5 hours, LTE communication included. 1 unit in operation.
Ear Cam
FHD (1920×1080) 2-megapixel, wired USB Type-C connection, Android OS. 1 unit in operation.
Drone
21-megapixel (5280×3956), 4K video (3840×2160), automated route flight, 3D line-of-sight orthophotography. 1 unit (dispatched as needed).
3D LiDAR Camera
High-precision LiDAR sensor, 100,000 points per second / 1.5 million points per scan, accuracy ±20mm@10m, capture speed under 20 seconds per scan. 1 unit (dispatched as needed).
